Dyeing
Untwist
Preshrinking
Reduction

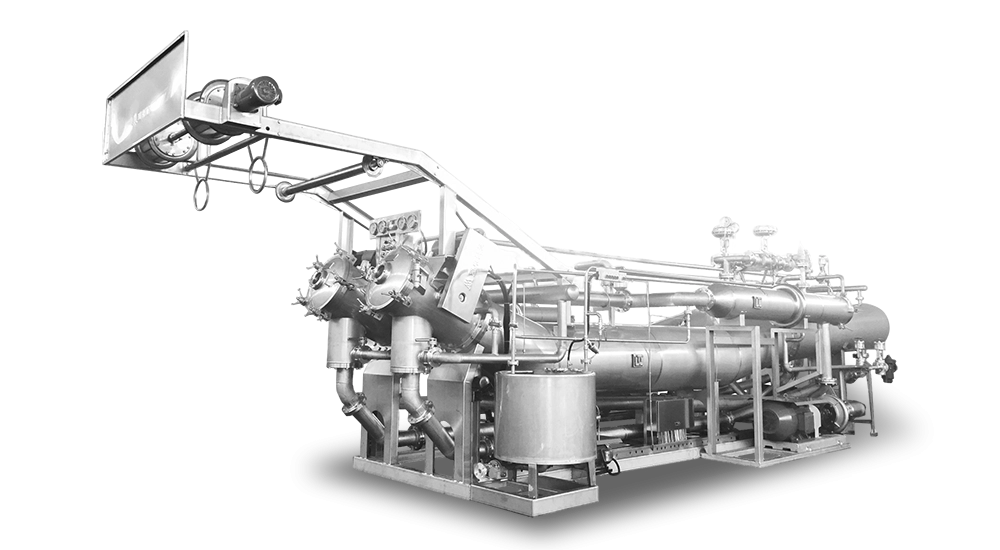

Dyeing,Untwisted,Preshrinking,Reduction and other ultra-low liquor ratio diverse processing.
Polyester , T/R, T/C, Cotton, Polyster with Cotton,Rayon......Dyeing process of such tissue fabric.
Special stepped main barrel structure, the fabric through the tail quickly into the main barrel stack creep, to solve the crease caused by a long time extrusion of the fabric.It reduces the energy consumption related to the high bath ratio of the traditional liquid flow dyeing machine, improves the operation effect of the cloth surface which is prone to quality change, and can also run smoothly at a high speed for the two-strand input, thus improving the dyeing production efficiency.
Achieve 1:4-6 ultra-low bath ratio operation, can be adjusted according to the actual conditions, save chemical agents and energy (steam, water).
|
ITEM / MODEL |
MK-1-250-P |
MK-2-500-P |
MK-4-1000-P |
|
MAX.TEMPERATURE |
℃ |
140 |
140 |
140 |
|
|
MAX.PRESSURE |
Kg/cm2 |
4 |
4 |
4 |
|
|
LIQUOR |
Lit |
1000-1500 |
2000-3000 |
4000-6000 |
|
|
CAPACITY |
Kg |
180-300 |
360-600 |
720-1200 |
|
|
MAIN PUMP |
HP |
25 |
50 |
100 |
|
|
FABRIC SPEED |
M/min |
150-600 |
150-600 |
150-600 |
|
|
DIMENSION |
LENGTH |
L1 |
9820 |
9820 |
9820 |
|
L2 |
11590 |
11590 |
11590 |
||
|
WIDTH |
W |
1600 |
2750 |
5200 |
|
|
HEIGHT |
H1 |
1670 |
1670 |
1670 |
|
|
H2 |
3060 |
3060 |
3060 |
||
