Dyeing, Untwisted, Preshrinking, Weight Reduction and other ultra-low liquor ratio diverse processing.

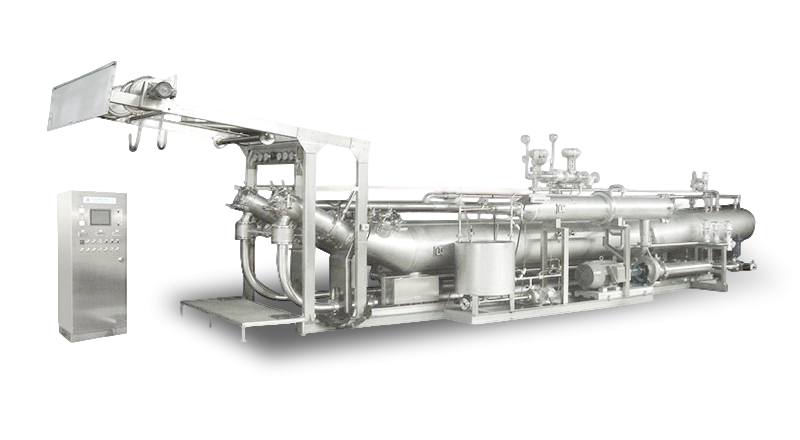

For 30g/m-300g/m, especially in high-density, superfine easier to scratch, slip, point defects, wrinkles and other thin fabric of jet dyeing machine solutions.
The Reelless type design and just use nozzle system to make the fabric moving which can reduce tension, It can effectively reduce the abrasion, wrinkles, cracks and other phenomena of the fabric.
The machine is equipped with feeding nozzle/pouring nozzle, which can operate independently from the main nozzle. The head door cover is equipped with safety protection device.
Large flow nozzles can improve the leveling effect, high head high quality main pump to provide stable and reliable efficient operation.
|
ITEM / MODEL |
SF-1-250/250-P |
SF-2-500/500-P |
SF-4-1000/1000-P |
|
MAX.TEMPERATURE |
℃ |
140 |
140 |
140 |
|
|
MAX.PRESSURE |
Kg/cm2 |
4 |
4 |
4 |
|
|
LIQUOR |
Lit |
900-1300/1000-1500 |
1800-2600/2000-3000 |
3600-5200/4000-6000 |
|
|
CAPACITY |
Kg |
150-250/180-300 |
300-500/360-600 |
600-1000/720-1200 |
|
|
MAIN PUMP |
HP |
25 |
40 |
75 |
|
|
FABRIC SPEED |
M/min |
150-600 |
150-600 |
150-600 |
|
|
DIMENSION |
LENGTH |
L1 |
9430/9450 |
9430/9450 |
9430/9450 |
|
L2 |
11300/11320 |
11300/11320 |
11300/11320 |
||
|
WIDTH |
W |
1600/1630 |
2550/2650 |
5130/5180 |
|
|
HEIGHT |
H1 |
1525/1612 |
1525/1612 |
1525/1612 |
|
|
H2 |
3140/3130 |
3140/3130 |
3140/3130 |
||
