Dyeing
Untwist
Pre-shrink
Decrease

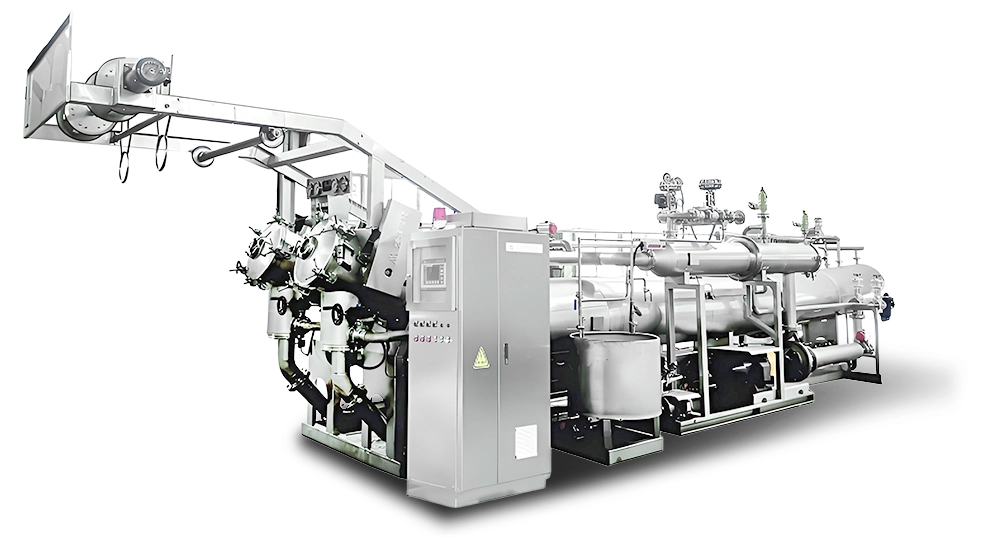

Dyeing, Untwisted, Preshrinking, Reduction and other ultra-low liquor ratio diverse processing.
The most of woven and warp knit fabrics; some of knitting.
Polyester, T/R, T/C, Nylon, Rayon, Tencel, Filament......Dyeing and processing of fabrics.

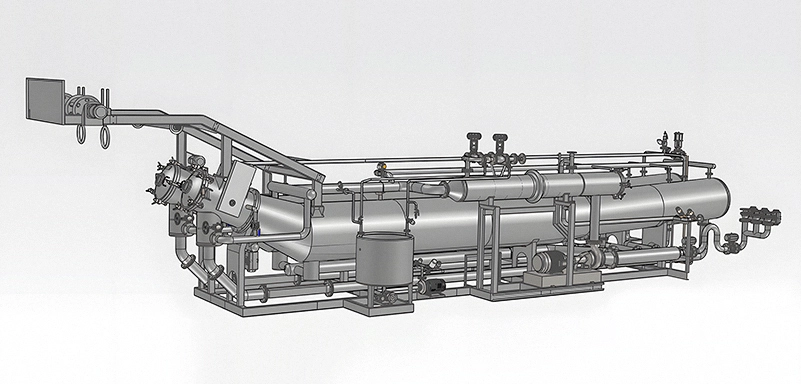

With the proper dyeing barrel structure, the fabric can quickly enter the main barrel after passing the tail to pile up and wriggle, so as to solve the crease caused by the fabric extrusion for a long time, and improve the running effect of the fabric surface which is prone to quality change. For the two-strand input, it can also run smoothly at high speed and improve the dyeing production efficiency.

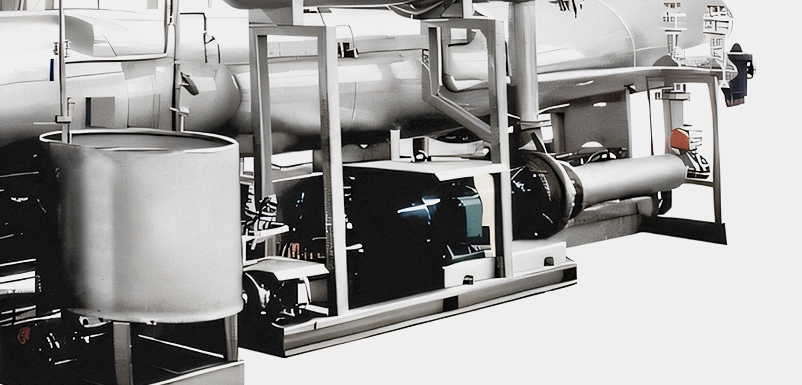

Large flow nozzles can improve the leveling effect, high head high quality main pump to provide stable and reliable efficient operation.
The speed of the guide wheel is automatically adjusted with the running speed of the fabric to effectively reduce the probability of fabric abrasion and winding.
Wide range of application.
| item / Model | SK-1-250/250-P | SK-2-500/500-P | SK-4-1000/1000-P |
| Max.Temperature | °C | 140 | 140 | 140 | |
| Max.Pressure | Kg/cm² | 4 | 4 | 4 | |
| Liquor | Lit | 1100-1750/1200-1900 | 2200-3500/2400-3800 | 4400-7000/4800-7600 | |
| Capacitye | Kg | 150-250/180-300 | 300-500/360-600 | 600-1000/720-1200 | |
| Main Pump | HP | 25 | 50 | 100 | |
| Fabric Speed | M/min | 150－600 | 150－600 | 150－600 | |
| Dimension (mm) | Length | L1 | 9350/9760 | 9350/9760 | 9350/9760 |
| L2 | 11120/11530 | 11120/11530 | 11120/11530 | ||
| Height | W | 1600 | 2750 | 5400 | |
| Width | H1 | 1670 | 1670 | 1670 | |
| H2 | 3060 | 3060 | 3060 | ||
