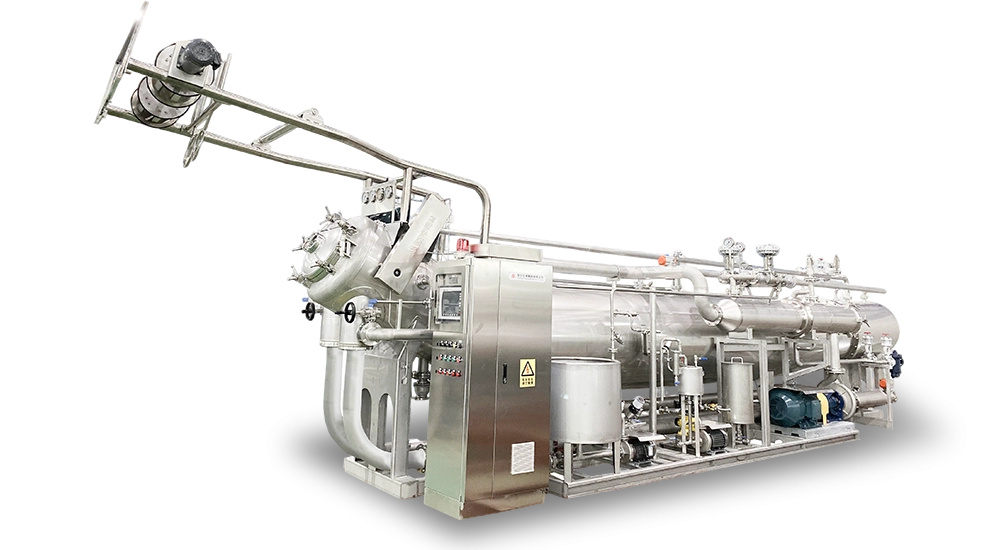

Dyeing, Untwisted, Preshrinking, Reduction and other ultra-low liquor ratio diverse processing.
Polyester, Nylon/Spandex, Polyester/Spandex, Polyester/Cotton, Polyester-viscose, Plush,Home Textiles……Dyeing process of such tissue fabric.
Large diameter single cylinder with double cloth groove design, save the width limit of machine installation, increase equipment arrangement and combination.
Single cylinder and double grooves share the cloth guide wheel design, which can realize the synchronous operation of double grooves.
The improvement of single machine utilization rate can make up for the adaptability of single machine input of this kind of product when the input of single meter length of specific cloth is limited.
The dye is separated from the fabric during the fabric lifting process to realize fast operation under low tension.
|
ITEM / MODEL |
SP-1-300 |
SP-1-500 |
SP-2-600 |
SP-2-1000 |
SP-4-1200 |
SP-4-2000 |
|
TUBE/CHAMBER |
Qty |
1/2 |
1/2 |
2/4 |
2/4 |
4/8 |
4/8 |
|
|
MAX.TEMPERATURE |
℃ |
140 |
140 |
140 |
140 |
140 |
140 |
|
|
MAX.PRESSURE |
Kg/cm2 |
3.8 |
3.8 |
3.8 |
3.8 |
3.8 |
3.8 |
|
|
LIQUOR |
Lit |
1500-2100 |
2500-3500 |
3000-4200 |
5000-7000 |
6000-8400 |
10000-14000 |
|
|
CAPACITY |
KG |
150-300 |
250-500 |
300-600 |
500-1000 |
600-1200 |
1000-2000 |
|
|
MAIN PUMP |
HP |
40 |
50 |
75 |
100 |
150 |
200 |
|
|
FABRIC SPEED |
M/min |
150-600 |
150-600 |
150-600 |
150-600 |
150-600 |
150-600 |
|
|
DIMENSION |
LENGTH |
L1 |
9635 |
11885 |
9635 |
11885 |
9635 |
11885 |
|
L2 |
7850 |
10100 |
7850 |
10100 |
7850 |
10100 |
||
|
WIDTH |
W |
2000 |
2000 |
3500 |
3500 |
6800 |
6800 |
|
|
HEIGHT |
H1 |
3270 |
3270 |
3270 |
3270 |
3270 |
3270 |
|
|
H2 |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
||
